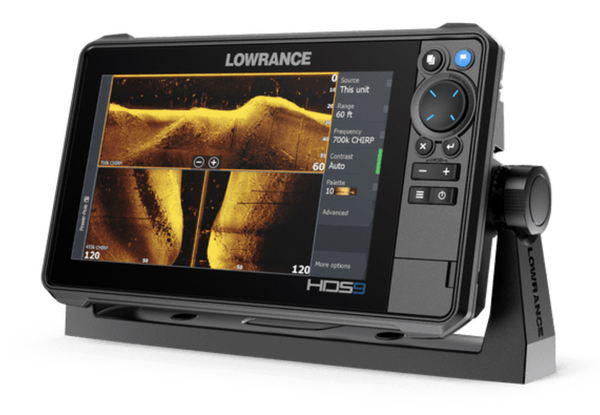

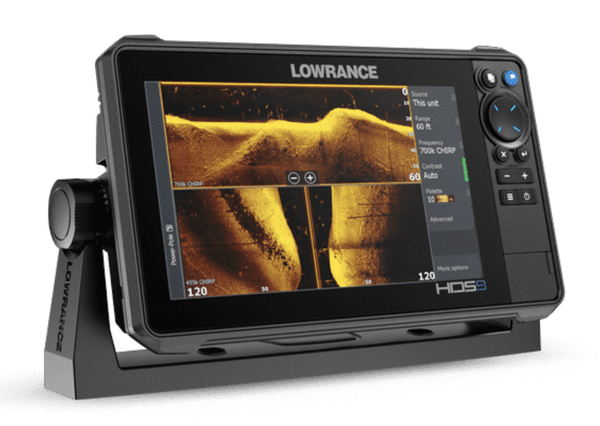

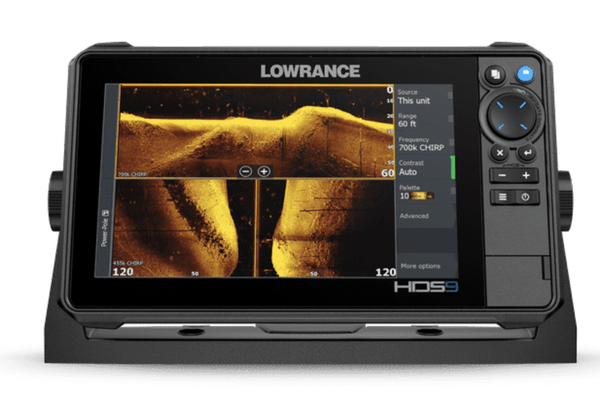

Lowrance HDS PRO ROW Chartplotter Fish Finder
- Available in 3 screen sizes
- Model: HDS PRO ROW
- Without transducer
- Sonar frequencies depend on selected transducer
- Active Imaging HD DownScan: 700/1200kHz CHIRP
- Active Imaging HD SideScan: 455/1075kHz CHIRP
- Active Imaging: 455/800kHz
- CHIRP Broadband sonar: 50/83/200kHz
- CHIRP: Low, Medium and High CHIRP
- Active Imaging support
- Active Imaging HD support
- Maximum depth up to 1524m
- ActiveTarget sonar compatible
- Sonar output up to 1kW
- 2 sonar ports
- SolarMAX HD IPS screen
- Full multi-touch touchscreen
- Resolution up to 1280×800
- 10Hz GPS/GLONASS
- WAAS/EGNOS/MSAS correction
- World basemap included
- 3,000 waypoints
- 100 routes
- 100 trails
- 8GB internal memory
- 2 microSD card slots

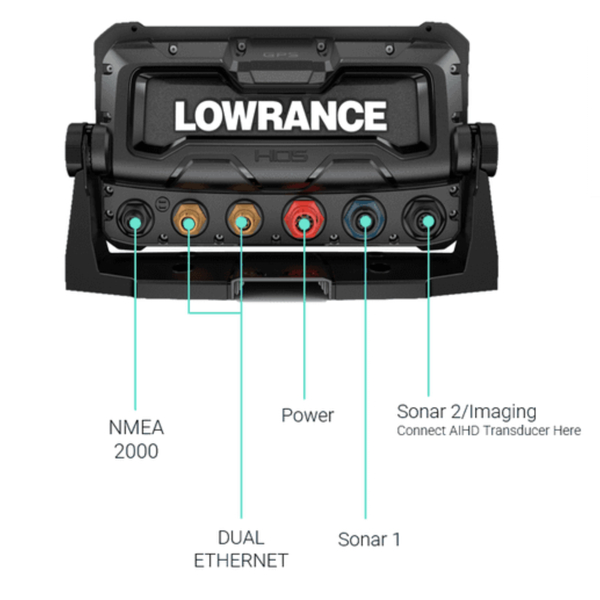

- 2×100Mbit ethernet ports
- NMEA 2000 support
- NMEA 0183 support
- WiFi support
- Bluetooth 4.0 connectivity
- AIS chart and radar overlay
- Navionics support
- C-MAP support
- Compatible with HALO radar
- Compatible with SonicHub and FusionLink
- Suitable for flush mount or bracket mount
- Compatible with NAC-1, NAC-2, Ghost, Recon and MotorGuide Xi5/Xi3
The Lowrance HDS PRO ROW No Transducer is a powerful fish finder and chart system for anglers who want to choose their own transducer or already have a suitable one. The SolarMAX HD IPS touchscreen provides a clear overview of sonar, charts, and navigation, while CHIRP, DownScan, SideScan, and Active Imaging HD support ensure extensive sonar capabilities. Thanks to GPS, chart support, ethernet, NMEA, WiFi, and autopilot compatibility, this system is ideal as a central display on a modern fishing boat. Choose the 9-inch version for a more compact setup, the 10-inch for extra screen space, or the 12-inch for maximum overview.
You can choose from the following options:
HDS-9 PRO No Transducer ROW
- Screen: 9-inch
- Resolution: 1280×720
- Weight: 1.39kg
- Max. power consumption: 40W
- Max. current draw: 2.9A at 13.8VDC

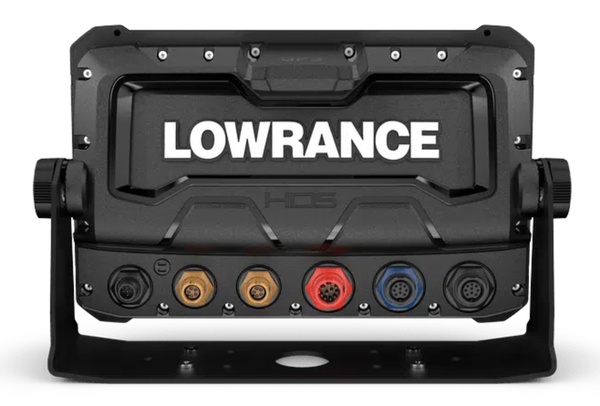

HDS-10 PRO No Transducer ROW
- Screen: 10-inch
- Resolution: 1280×720
- Weight: 1.66kg
- Max. power consumption: 40W
- Max. current draw: 2.9A at 13.8VDC
- 2 programmable shortcut keys

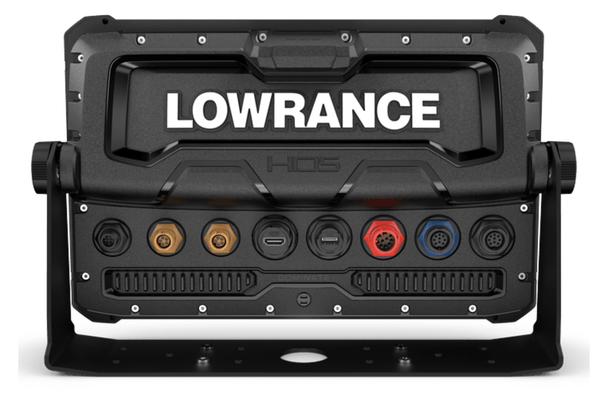

HDS-12 PRO No Transducer ROW
- Screen: 12-inch
- Resolution: 1280×800
- Weight: 2.61kg
- Max. power consumption: 47.7W
- Max. current draw: 3.6A at 13.8VDC
- 4 programmable shortcut keys
- 1 USB-A port
- 1 HDMI input
